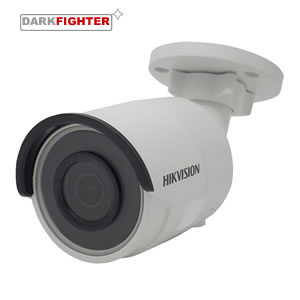

Hikvision DS-2CD2045FWD-I 4MP H.265+ Darkfighter Smart IP Bullet Camera Built-in SD Card Slot.

The Hikvision DS-2CD2045FWD-I 4MP Compact IR Bullet DarkFighter
IP Camera includes a popular small form factor casing yet boast good
frames and 4 Behavior analyses for excellent night time viewing.

1/2.5″ Progressive Scan CMOS

2688 × 1520 @30fps

2.8mm fixed lens

H.265, H.265+, H.264+, H.264

4 Behavior analyses

120dB WDR

Powered by Darkfighter

BLC/3D DNR/ROI/HLC

IR range: up to 30 m

Bulit-in microSD/SDHC/SDXC card slot, up to 128 GB

IP67

Image Sensor    1/2.5″ Progressive Scan CMOS

Electronic Shutter Speed    1/3 s to 1/100,000 s

Min. Illumination    Color: 0.008 lux @(F1.2, AGC
ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR

Video Output    N/A

Alarm in/out    N/A

Audio in/out    N/A

Max. IR LEDs Length    30m

Focal Length    2.8

Angle of View H    109°

Smart Phone    N/A

Smart Feature-set    Line crossing detection,
Intrusion detection, Unattended baggage detection, Object removal
detection, Behavior Analysis, Face Detection

Memory Slot    Bulit-in microSD/SDHC/SDXC card slot,
up to 128 GB

Power Supply    12 VDC ± 25%, PoE (802.3af Class3)

Working Environment    -30°C~+60°C

Ingress Protection    IP67

Vandal Resistance    N/A



Camera

Image Sensor:        1/2.5″
Progressive Scan CMOS

Signal System:        PAL/NTSC

Min. Illumination:        Color: 0.008
lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR

Shutter time:        1/3 s to
1/100,000 s

Slow shutter:        Support

Lens:        2.8 mm, horizontal FOV:
109°, vertical FOV: 60°, diagonal FOV: 131°

4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°

6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°

8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°

12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°

Lens Mount:        M12

Adjustment Range:        Pan: 0° to
360°, tilt: 0° to 90°, rotate: 0° to 360°

Day& Night:        IR Cut Filter

Wide Dynamic Range:        120 dB

Digital noise reduction:        3D DNR

Focus:        Fixed

Compression Standard

Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG

H.264 code profile:        Main
Profile/High Profile

Video bit rate:        32Kbps~16Mbps

Triple Streams:        Yes




Max. Image Resolution:        2688 × 1520
Frame Rate:        50Hz: 25 fps (2688 ×
1520, 2304 × 1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub Stream:        50Hz: 25 fps (640 ×
480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:        50Hz: 25 fps (1280 ×
720, 640 × 360, 352 × 288)
60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:        BLC/3D
DNR/ROI/HLC
Image Settings:        Rotate mode,
saturation, brightness, contrast, sharpness and white balance
adjustable by client software or web browser
ROI:        Support 1 fixed region for
main stream and sub stream separately
Day/Night Switch:
Day/Night/Auto/Schedule

Network

Network Storage:        microSD/SDHC/SDXC
card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:        Motion detection,
video tampering alarm, network disconnected, IP address conflict,
illegal login, HDD full, HDD error
Protocols:        TCP/IP, ICMP, HTTP,
HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:        One-key reset,
Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:        ONVIF
(Profile S, Profile G), ISAPI

Interface

Communication Interface:        1 RJ45
10M / 100M Ethernet interface
On-board storage:        Built-in Micro
SD/SDHC/SDXC slot, up to 128 GB
Reset Button:        Yes

Smart Feature-set

Behavior
Analysis:        Line crossing detection,
Intrusion detection, Unattended baggage detection, Object removal
detection
Line Crossing
Detection:        Cross a pre-defined
virtual line
Intrusion
Detection:        Enter and loiter in a
pre-defined virtual region
Unattended
Baggage:        Objects left over in the
pre-defined region such as the baggage, purse, dangerous materials
Object Removal:
Objects removed from the pre-defined region, such as
the exhibits on display.
Exception
Detections:        Scene change detection
Recognition:
Face Detection

General

Operating Conditions:        -30 °C ~ 60
°C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:        12 VDC ± 25%, PoE
(802.3af Class3)
Power Consumption:        12 VDC, 0.5 A,
max. 5.5 W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W
Weather Proof:        IP67
IR Range:        Up to 30m
Dimensions:        Camera: Φ70 × 155 mm
(Φ2.8″ × 6.1″)
Package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.7″)
Weight:        Camera: 410 g (0.9 lb.)
