Grandstream GWN7660

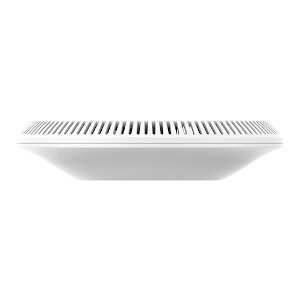

Grandstream GWN7660 Enterprise dual-band 2x2:2 MU-MIMO 802.11ax Wi-Fi 6 access point - Image 2

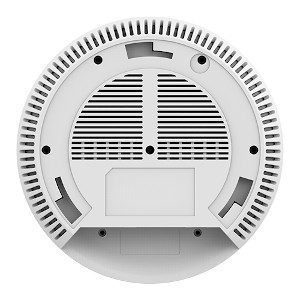

Grandstream GWN7660 Enterprise dual-band 2x2:2 MU-MIMO 802.11ax Wi-Fi 6 access point - Image 3
Grandstream GWN7660 Enterprise dual-band 2x2:2 MU-MIMO 802.11ax Wi-Fi 6 access point - Image 4
Grandstream GWN7660
Grandstream GWN7660 Enterprise dual-band 2×2:2 MU-MIMO 802.11ax Wi-Fi 6 access point
Grandstream GWN7660 Enterprise dual-band 2×2:2 MU-MIMO 802.11ax Wi-Fi 6 access point
Grandstream GWN7660 Enterprise dual-band 2×2:2 MU-MIMO 802.11ax Wi-Fi 6 access point
,

Grandstream GWN7660 Enterprise dual-band 2×2:2 MU-MIMO 802.11ax Wi-Fi 6 access point

Grandstream
Availability:

Out of stock
Add to wishlist
Compare

The GWN7660 is an enterprise-grade 802.11ax Wi-Fi 6 access point and offers dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput, that allows businesses to build next-generation Wi-Fi networks for high-density environments.

₦156,740.46

Out of stock

The GWN7660 is an enterprise-grade 802.11ax Wi-Fi 6 access point and offers dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput, that allows businesses to build next-generation Wi-Fi networks for high-density environments.

Description

The GWN7660 offers dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Features

  • 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
  • Dual-band 2×2:2 MUMIMO with DL/UL OFDMA technology
  • Up to 175-meter coverage range
  • Supports 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self-power adaptation upon auto detection of PoE or PoE+
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller



SKU: GWN7660 Categories: ,

Specifications

Dimensions 1 × 1 × 1 cm

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Antennas 2 dual band internal antennas
2.4GHz, gain 3dBi / 5 GHz, gain 4dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ax: 7.3 Mbps to 1201 Mbps;
IEEE 802.11ac: 6.5 Mbps to 867 Mbps;
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio
interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz radio: 2400-2483.5MHz
5GHz radio: 5150-5850MHz
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and
critical data/control lockdown via digital signatures, unique security certificate and random
default password per device
MIMO 2×2:2 2.4GHz
2×2:2 5GHz
Coverage Range Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power
5G: 22dBm
2.4G: 24dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 ;
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @
MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients 256
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 3 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE 802.3af/ 802.3at;
Maximum Power Consumption: 9W
Environmental
Operation: 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical Unit Dimension: 180.4mmx180.4mmx40.8mm; Unit Weight: 443g
Entire Package Dimension: 228.5x220x79mm; Entire Package Weight: 774g
