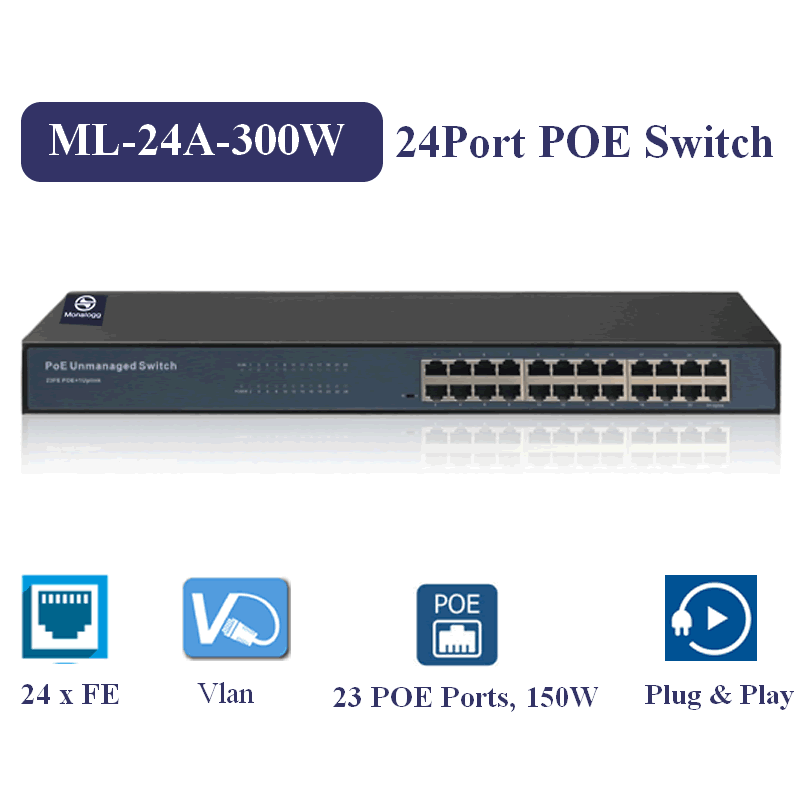

24 Port 10/100M POE Switch with VLAN Support ML-24A-300W

This ML-24A-300W POE+ switch provides a network point for power supply and
data transmission. 23 PoE ports can be connected with 10/100Mps
quickly, and 1uplink port among which 1-24 ports can provide standard
IEEE802.3af/at power supply. Due the advanced self-sensing algorithm
supply power for IEEE802.3af/at terminal unit, there is no need to
worry about damaging proprietary PoE or non-PoE standard equipment. In
addition, it will stop power supply when PoE devices are not connected.
In short, The ML-24A-300WPOE+ features simple and reliable design,
automatic identification PoE requirements, duplex and high-speed.

This cost-effective ML-24A-300WPOE+ provide network layout need to simplify
wireless access point (AP) and IP-based surveillance cameras network
cameras in order to install in commercial network and home network. The
devices far away from power socket are very suitable for hanging on the
wall or ceiling. PoE eliminates the need for connecting these devices
to power socket. So it make more flexible for those difficult to
connect with AC power socket, and cut down the installation cost. It is
ideal choice for those want to deploy a small commercial network and
home network that use wireless access point (AP) and IP-based
surveillance cameras.

Feature

â—†Can supply power to network surveillance cameras that without PoE
function

â—†23x 100Mbps auto-sensing RJ45 ports, 1x 10/100 Copper RJ45 ports

â—†Supports port auto-flip (Auto MDI/ MDIX)

â—†Maximum PoE power: 300W

â—†Maximum power per port: 30W

â—†Adopts store-and-forward architecture

â—†IEEE 802.3af/at

â—†Features with fan design, small, compact and quiet design, suitable
for desktop or wall

â—† Built-in 1U rack power supply series, easy to place it into standard
mounting brackets

Target Industries

â—†HD monitor transmission and power supply
â—†Wireless AP layout transmission and power supply
â—†Network telephone transmission , intelligent house and home system
â—†Intelligent transportation supervisory system(ITS)
â—† High-speed Way supervisory/Tele-Communication System
â—† Security protection system, TV medical treatment
â—† Long-distance Muti-media Schooling, Campus monitoring
â—† Long-distance broadcast television transmission system
â—† High-building Security Protection, Military Tele-Com projects
