ES32 Stair Controller PIR Sensor – 32CH LED Stair Light Controller with Motion Sensor for Smart Staircase Lighting (5-24V)

ES32 Stair Controller PIR Sensor – Smart 32CH LED Stair Lighting Controller

The ES32 Stair Controller PIR Sensor is an advanced LED stair light controller designed to automate staircase lighting using motion detection technology.
This intelligent controller supports 32 constant voltage output channels and 2 SPI digital RGB outputs, enabling dynamic stair lighting effects and smooth stepped dimming for modern homes, offices, and commercial buildings.

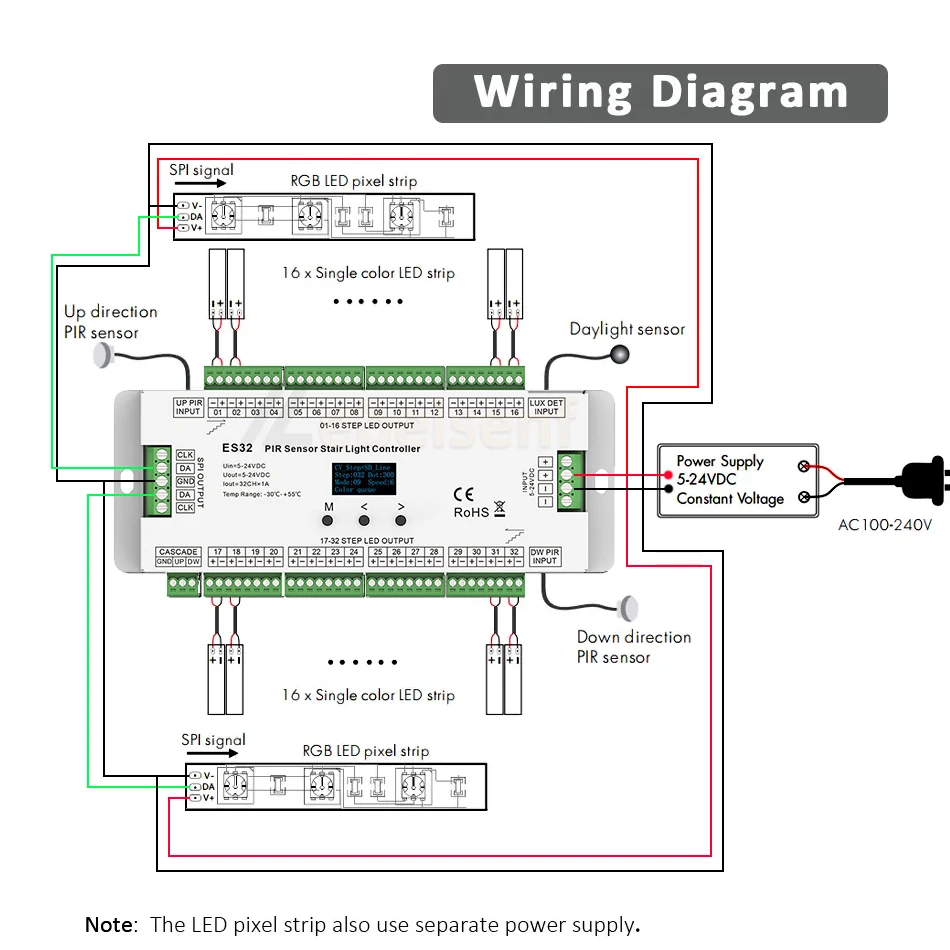

Powered by a reliable PIR motion sensor, the controller automatically activates staircase lights when movement is detected, improving convenience, safety, and energy efficiency. It supports DC 5V–24V LED strip lighting and delivers up to 768W total output power, making it suitable for both residential and professional lighting installations.

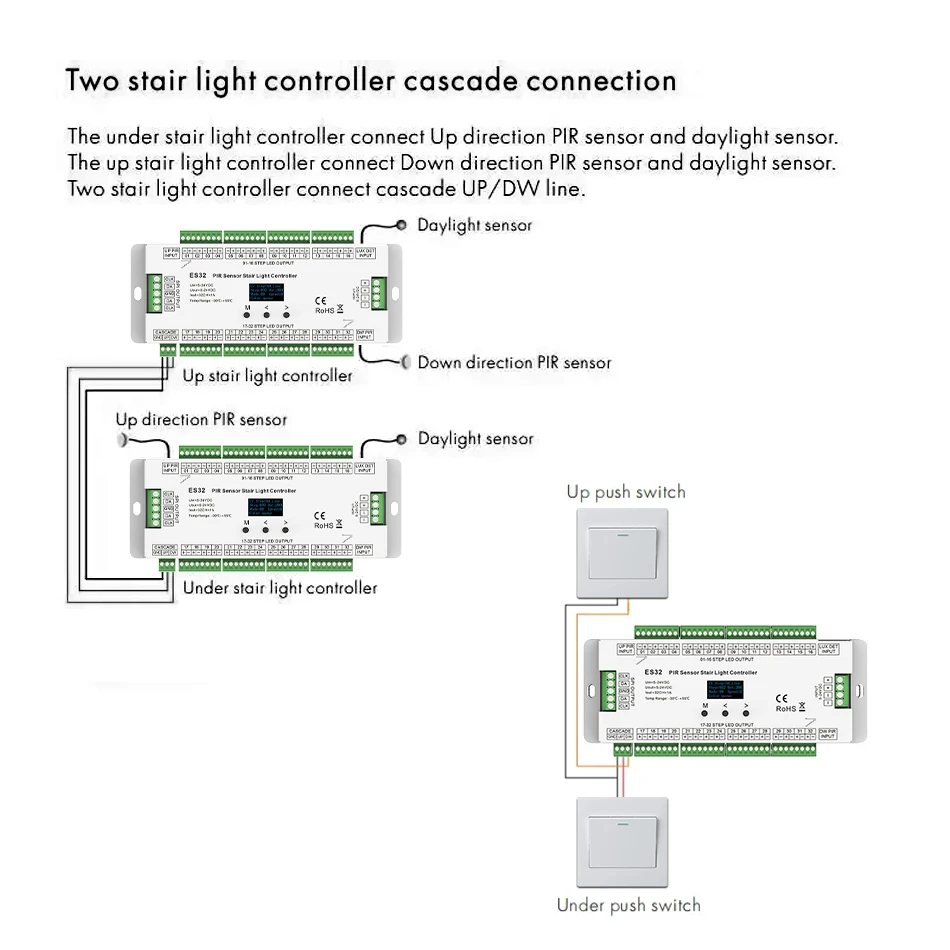

With its built-in OLED display screen and intuitive button control, users can easily configure lighting modes, brightness levels, color effects, and sensor sensitivity. The controller also supports cascading of two units, enabling expanded lighting control for larger staircases.

Key Features of ES32 Stair Controller PIR Sensor

• Advanced PIR motion sensor staircase controller with daylight detection
• 32 channel LED output for staircase step lighting
• Supports RGB pixel LED strips via SPI interface
• Compatible with over 28 types of IC digital LED strips

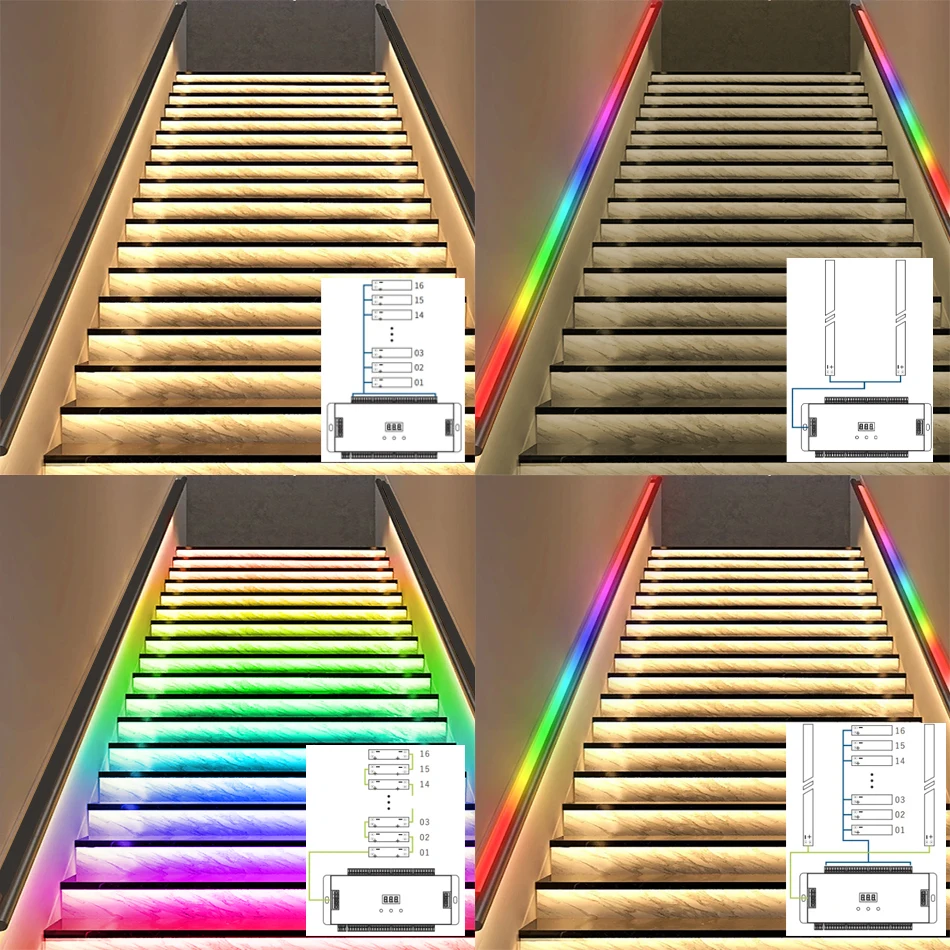

• Stepped dimming lighting effects for elegant stair illumination
• OLED display with button control for easy configuration
• Adjustable brightness and animation speed levels
• Supports cascading of multiple controllers
• Fast inspection function for easy maintenance
• Ability to disable faulty channels automatically

ES32 Stair Controller PIR Sensor – Smart Lighting Control

The ES32 Stair Controller PIR Sensor is ideal for modern smart lighting installations. It supports multiple LED IC chipsets including WS2811, WS2812, TM1804, UCS1903, SK9822, LPD8803, and more. This allows installers to create impressive lighting animations for staircases, walkways, or architectural lighting systems.

When paired with the included PIR motion sensors and daylight sensor, the controller activates lighting only when needed, reducing power consumption and extending LED lifespan.

Compatible Digital LED IC Types

TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TM1914A, GW6205, GS8206, GS8208, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, SM16703P

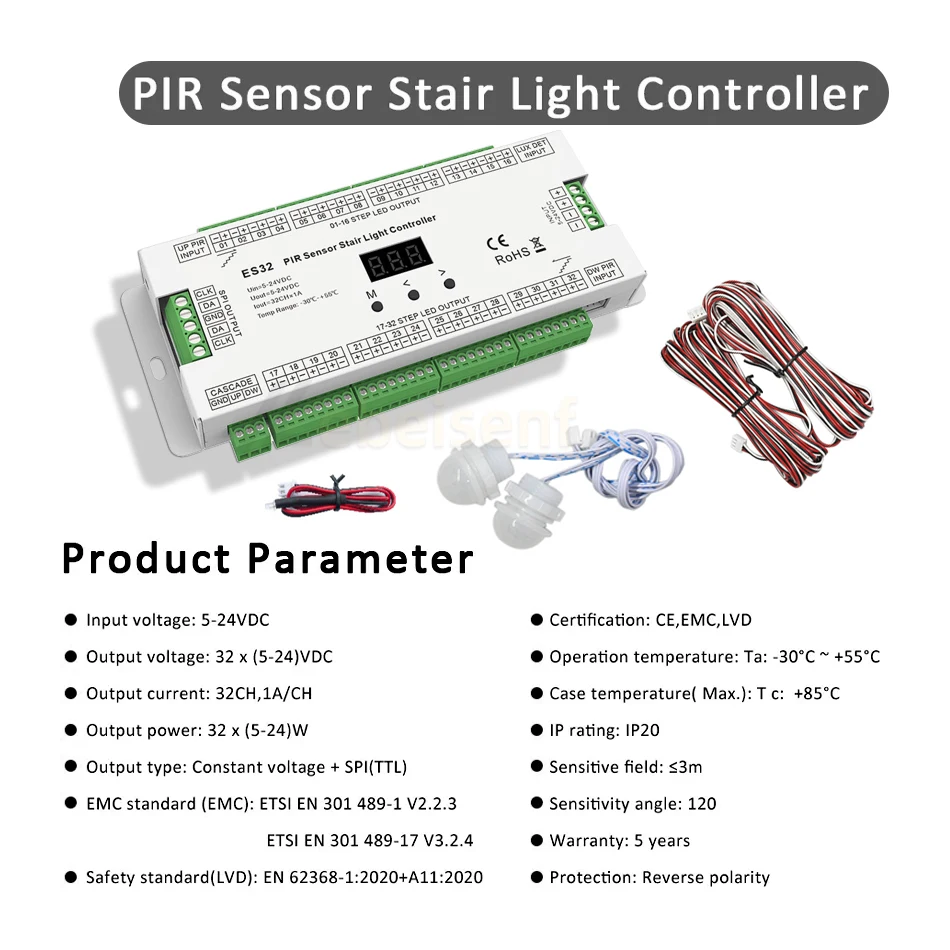

Product Specifications

• Product Name: LED Stair Strip Controller
• Model: ES32 Stair Controller PIR Sensor

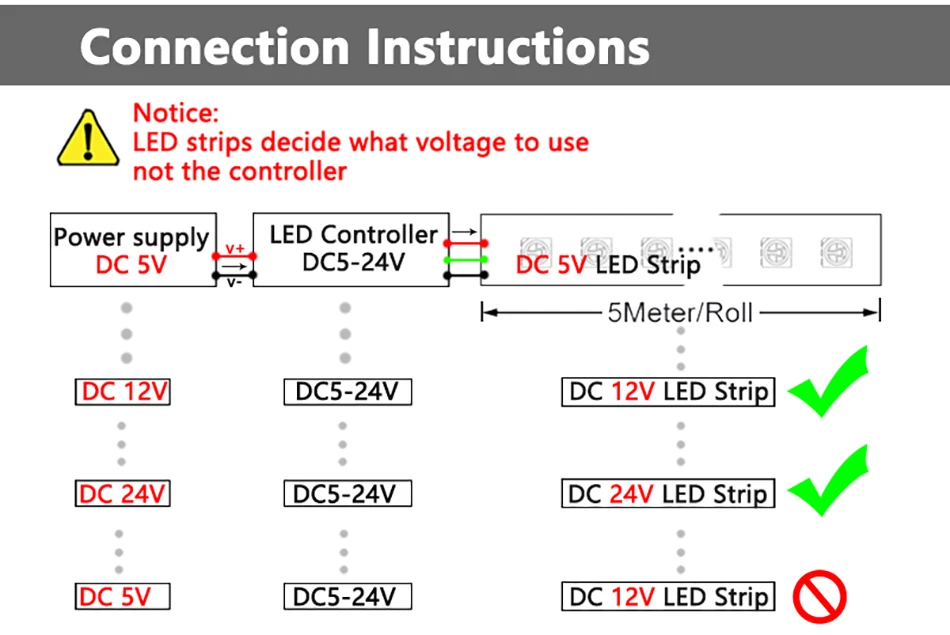

• Input Voltage: DC 5V – 24V
• Output Voltage: 32 × (5-24V) DC
• Output Channels: 32 Channel + 2 SPI
• Output Current: 1A per channel
• Total Output Power: Up to 768W (24V)
• Output Type: Constant Voltage PWM + SPI (TTL)
• Control Mode: PIR Motion Sensor

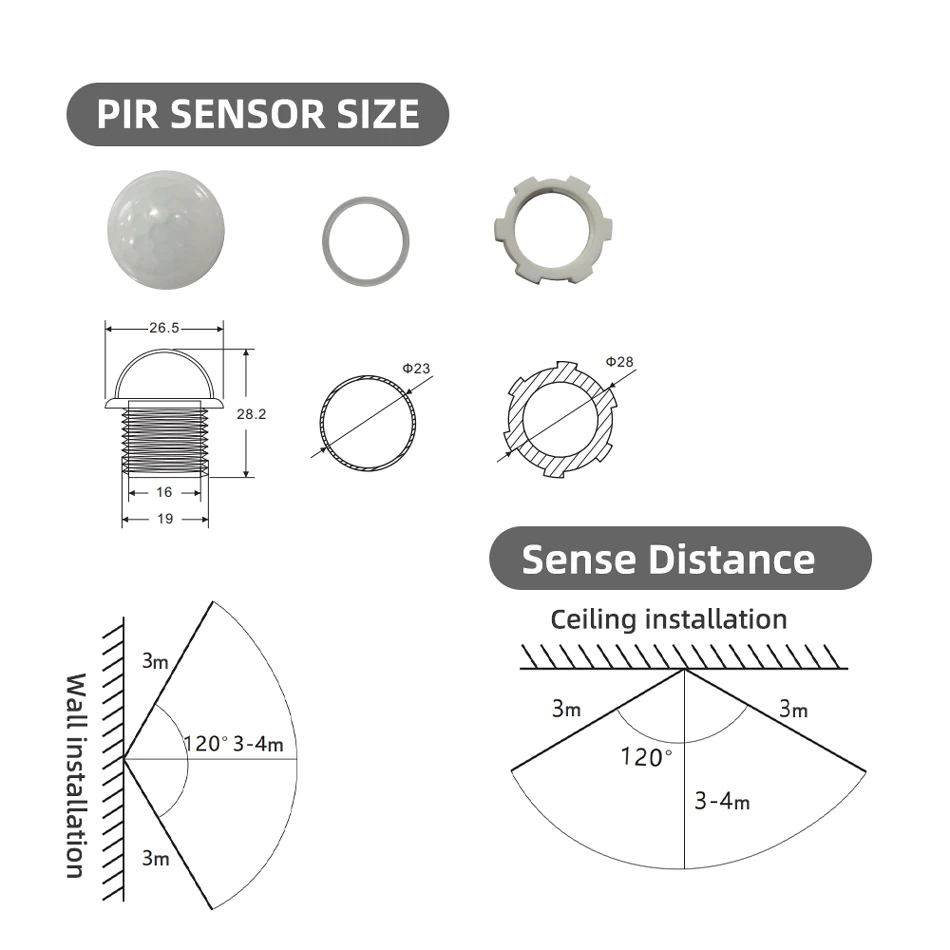

• Sensing Range: 0 – 3 meters
• Sensing Angle: 120°
• Display: OLED Screen with Button Control
• Operating Temperature: -30°C to +55°C
• Maximum Shell Temperature: +85°C
• Protection Rating: IP20

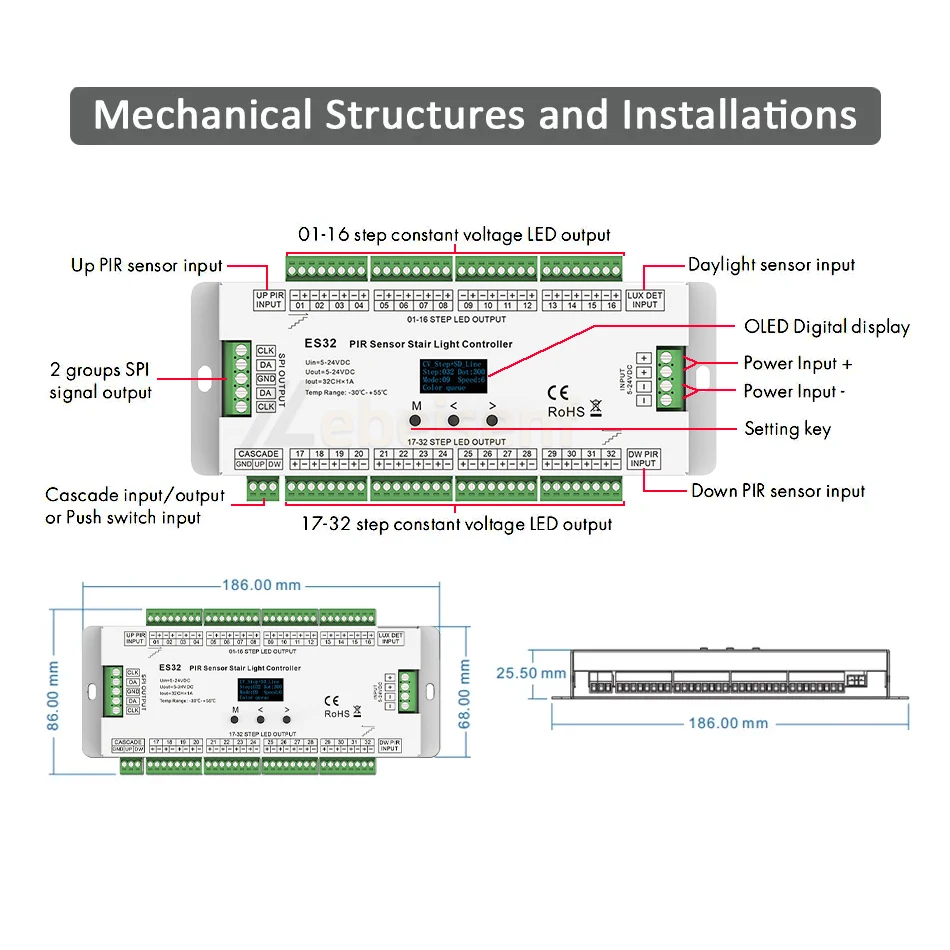

• Dimensions: 185 × 86 × 25.5 mm
• Certification: CE, RoHS

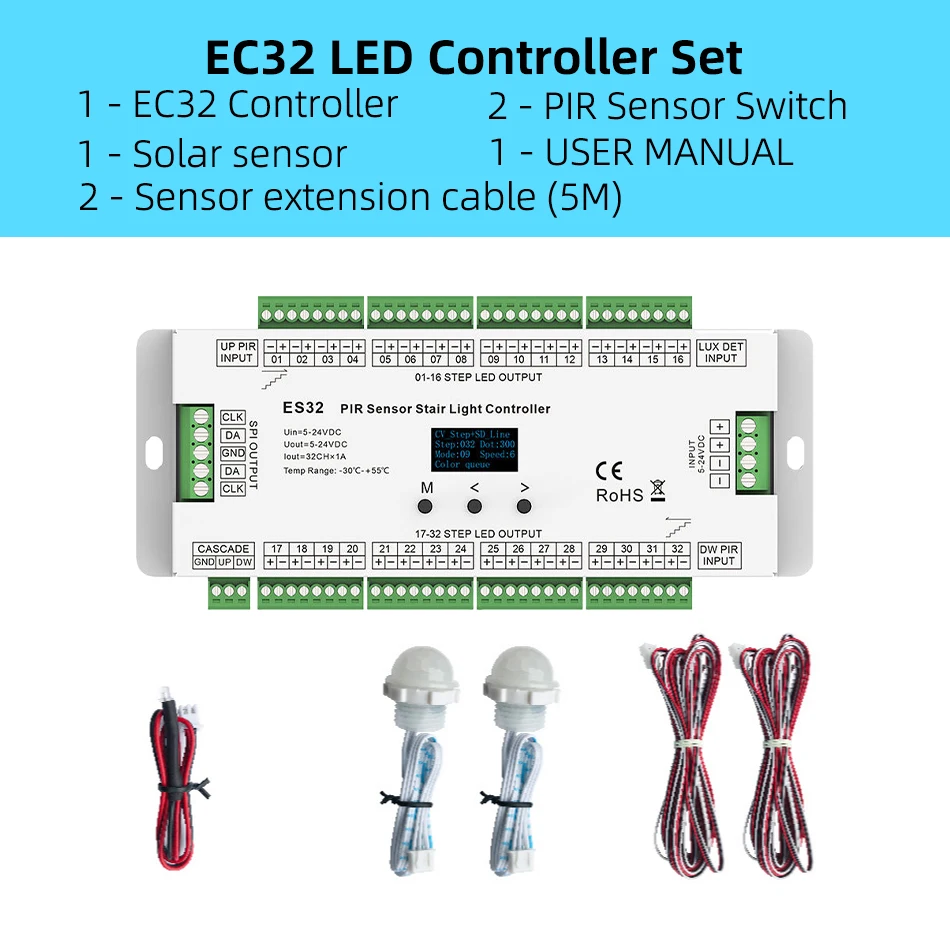

Package Contents

• 1 × ES32 Stair LED Controller
• 2 × PIR Motion Sensors
• 1 × Daylight Sensor
• 2 × 5m Sensor Extension Cables
• 1 × User Manual

Note: LED strips and power supply are not included.

Applications

• Smart staircase lighting systems
• Residential home stair illumination
• Hotel and commercial building stairways
• Architectural lighting installations
• Smart home automation lighting
